CODEGEN Studio

CODEGEN Studio is a browser-based visual editor for assembling User-Defined Models using the CODEGEN block library. Instead of writing DSL files by hand, you drag blocks onto a canvas, connect them, fill in metadata, and export a valid .txt file ready for the codegen binary.

Getting Started

Installation

git clone https://github.com/SPS-L/stepss-cg-studio
cd stepss-cg-studio
pip install -r requirements.txt
python server/app.py

Open http://localhost:8765 in your browser.

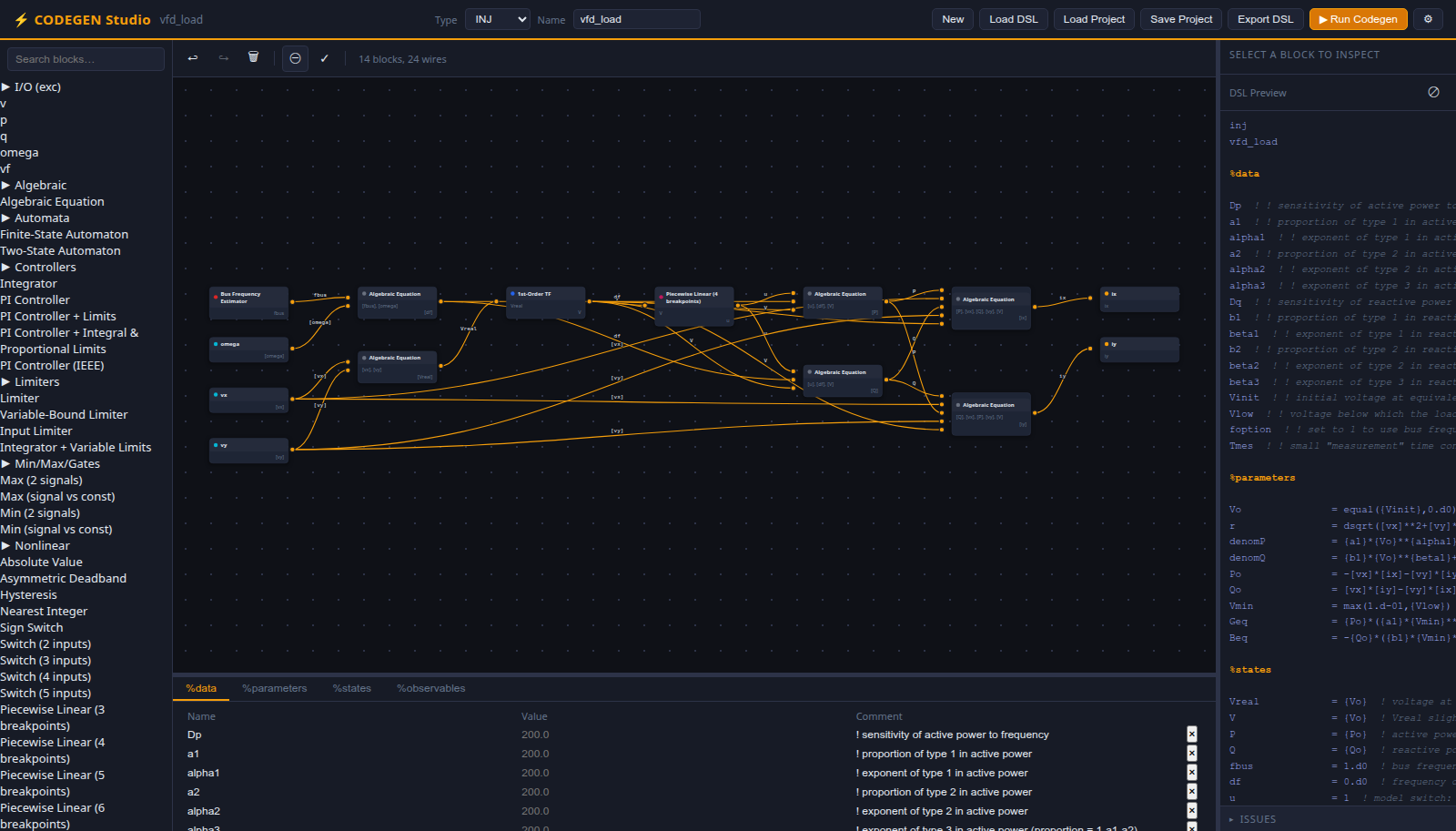

Interface Overview

The interface has three columns:

Area	Location	Purpose
Block palette	Left sidebar	Searchable catalogue of all CODEGEN blocks, grouped by category
Canvas	Center	Drag-and-drop block diagram with connection wires
Metadata tabs	Below canvas	Editable tables for %data, %parameters, %states, %observables
Block inspector	Right panel (top)	Edit output signal names and block arguments for the selected block
DSL preview	Right panel (bottom)	Live syntax-highlighted preview of the generated DSL code
Topbar	Top	Model type/name selectors, file operations, and settings

---

Creating a Model

1. Choose the Model Type and Name

Use the Type dropdown in the topbar to select the model category:

Type	Description	Mandatory outputs	Colour theme
EXC	Excitation controller	vf	Blue
TOR	Torque controller	tm	Green
INJ	Current injector	ix, iy	Orange
TWOP	Two-port device	ix1, iy1, ix2, iy2	Purple

The UI accent colour changes to reflect the active model type. Type the model name (max 32 characters) in the Name field next to the dropdown.

Model type determines available inputs

Each model type exposes a different set of RAMSES input variables. For instance, an EXC model can reference [v], [p], [q], [omega], [if], and [vf], while a TOR model only has [p], [omega], and [tm]. See User-Defined Models for the complete list.

2. Add Blocks to the Canvas

The left palette lists all available blocks from the CODEGEN Blocks Library, organised by category (Transfer Functions, Limiters, Controllers, etc.).

1. Search by typing in the search box at the top of the palette
2. Expand a category by clicking its header
3. Drag a block from the palette onto the canvas

Each block appears as a node with input ports on the left and output ports on the right. A coloured dot indicates the block category.

3. Connect Blocks

Click and drag from an output port (right side) of one block to an input port (left side) of another. A wire appears showing the signal flow. The connection assigns a signal name that links the two blocks in the generated DSL.

• Each input port accepts exactly one incoming wire
• Each output port can fan out to multiple inputs
• The status bar below the canvas toolbar shows the current block and wire count

Cycle detection

If your connections form a cycle, the status bar shows “Cycle detected” in red and DSL export is blocked. Feedback loops in control systems are valid in RAMSES, but the loop must be broken by declaring the fed-back signal as a %state with an explicit initial value. See User-Defined Models — States for details.

4. Edit Block Properties

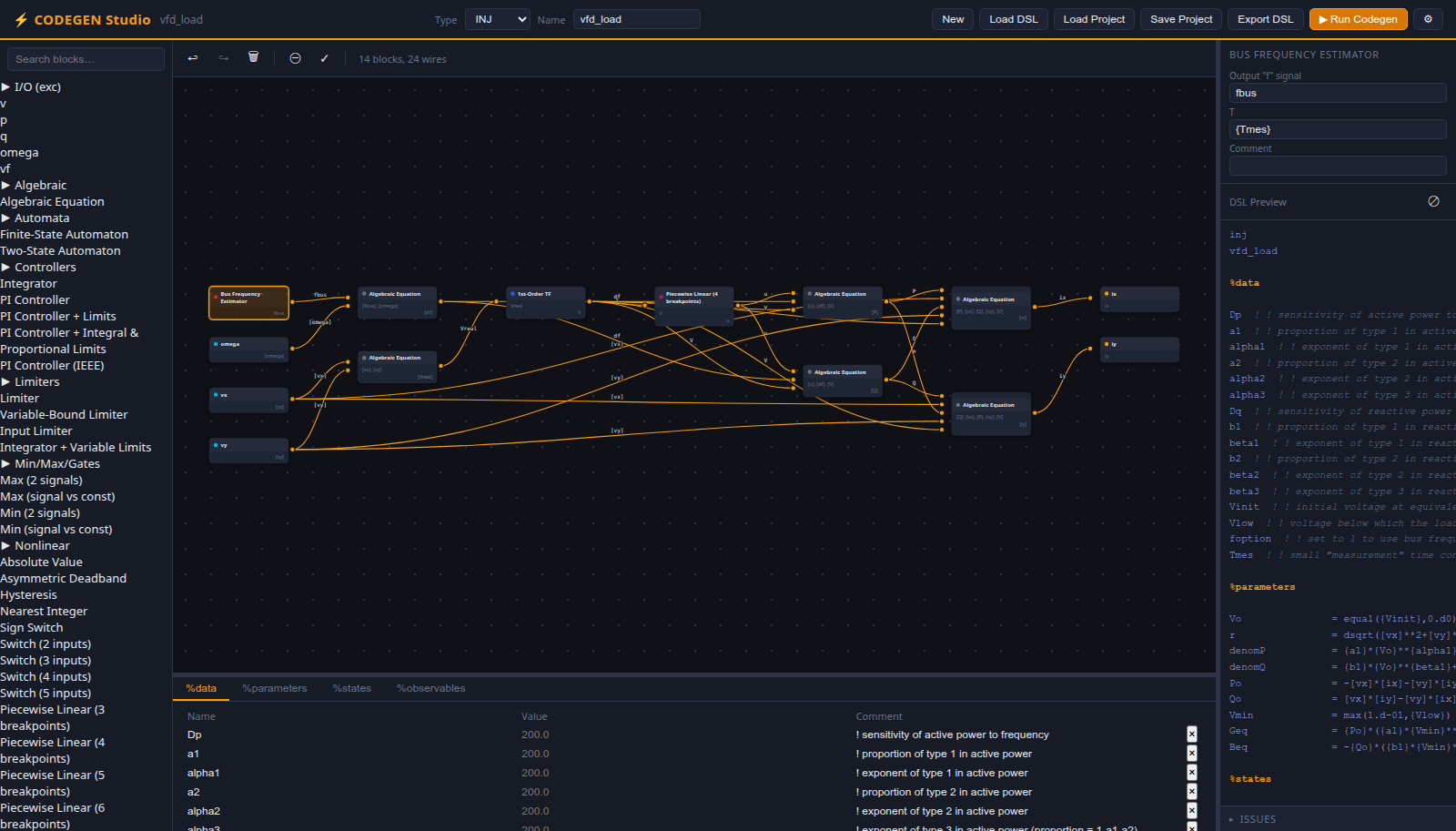

Click a block on the canvas to select it. The Block Inspector (right panel) shows:

• Output signal names — one editable field per output port. The default auto-generated name (e.g., tf11, int2) can be renamed to any valid identifier. This is the state name that appears in the DSL.
• Arguments — block-specific parameters such as gain K, time constant T, or limiter bounds. Values can be:
  • A numeric literal: 1.0
  • A data reference: {KA} (refers to an entry in %data)
  • A Fortran expression: {1/{omegac}}

The algeq (algebraic equation) block has a special Expression field for the equation set to zero.

5. Fill in the Metadata Tables

The four tabs below the canvas correspond to the four metadata sections of a CODEGEN DSL file:

%data

Purpose: Declare named constants whose values are read from the RAMSES data record at runtime.

Column	Description	Example
Name	Identifier (max 20 chars)	KA
Value	Optional default	200.0
Comment	Annotation	AVR gain

In block arguments and expressions, reference data values with braces: {KA}.

%parameters

Purpose: Define derived quantities computed once at initialisation from data and initial state values.

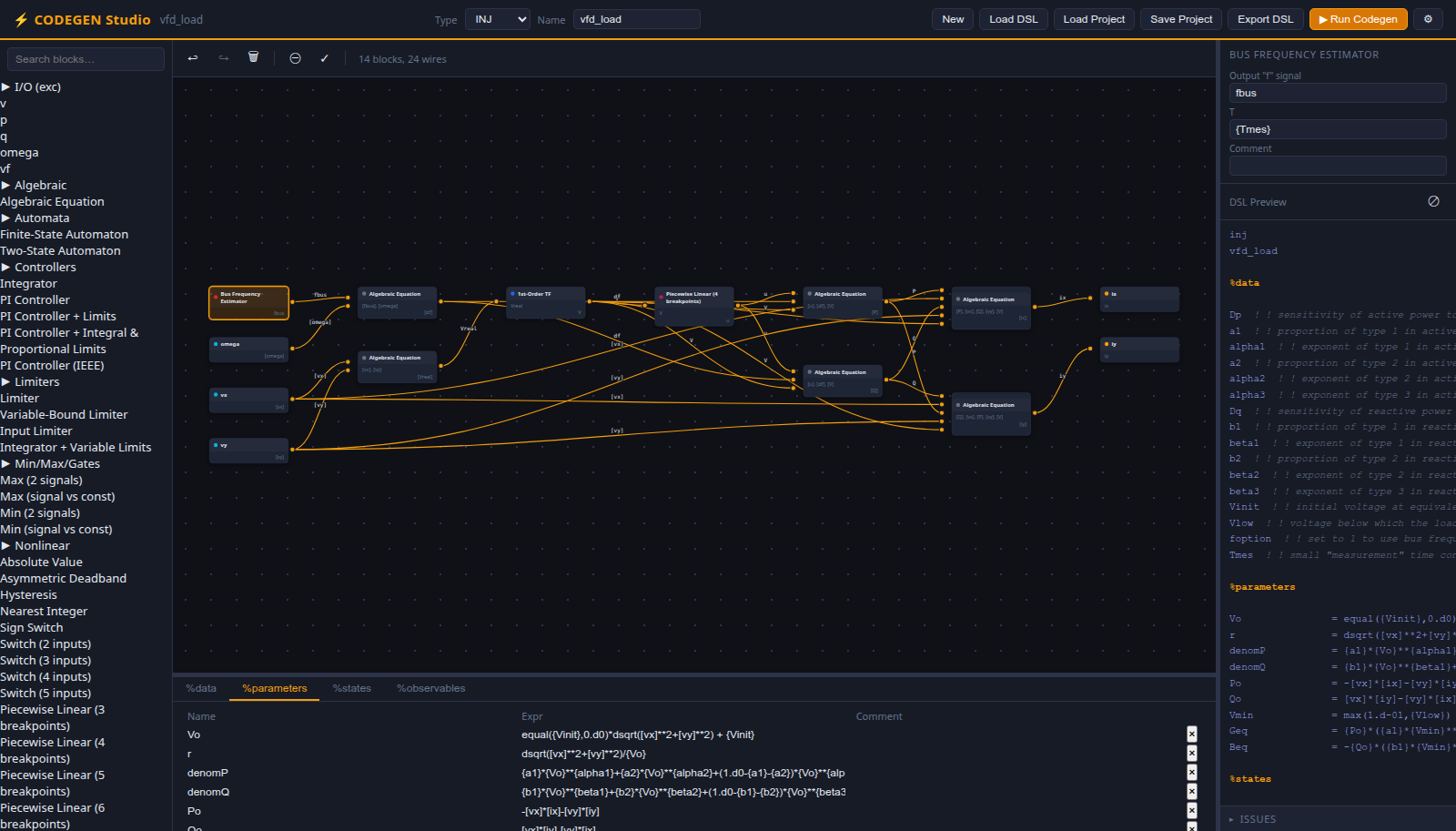

Column	Description	Example
Name	Identifier	Vo
Expr	Fortran expression	[vf]/{KE}+[vf]/{KA}
Comment	Annotation	initial voltage

Use [name] to reference state/input variables and {name} to reference data constants. Multi-line expressions are supported with the & continuation marker.

%states

Purpose: Declare the internal state variables of the model and their initial-condition expressions.

Column	Description	Example
Name	State identifier	avr1
Init	Initial value expression	vf/{KE}
Comment	Annotation	AVR integrator

Every block output signal that represents a dynamic state should have a corresponding entry here. The mandatory output states for the selected model type (e.g., vf for EXC) must appear either as block outputs or in %states.

%observables

Purpose: List variables to be recorded during simulation. These are typically the states you want to monitor.

Column	Description	Example
Name	Observable name	vf

Observables do not need expressions — they refer to state names already defined elsewhere in the model.

Click ”+ Add row” to append a row. Click the x button on a row to remove it. All edits update the DSL preview in real time.

6. Review the DSL Preview

The bottom-right panel shows a live syntax-highlighted preview of the generated DSL code. It updates automatically (with a 600 ms debounce) after every change. The preview uses colour coding:

Colour	Meaning
Orange, bold	Section headers (%data, %parameters, etc.)
Gray, italic	Comments (! ...)
Blue	Numeric literals
Purple	Data/parameter references ({KA})
Cyan	State/input references ([omega])

Click the copy button in the preview header to copy the DSL text to your clipboard.

---

Saving a Project

Click “Save Project” in the topbar (or press Ctrl+S / Cmd+S).

The browser downloads a .json file named after your model (e.g., simple_avr.json) containing the complete project state:

• Model type and name
• All blocks with their positions, arguments, and output signal names
• All wire connections
• All metadata (data, parameters, states, observables)

This is a lossless format — every aspect of your canvas layout and configuration is preserved. Use this format for work-in-progress models that you intend to continue editing.

---

Loading a Project

Click “Load Project” in the topbar and select a previously saved .json file.

The editor restores the full project state:

• Canvas blocks appear at their saved positions
• All wires are reconnected
• Metadata tables repopulate
• The model type and name update in the topbar
• The colour theme switches to match the model type

A toast notification confirms the load with the model name.

New vs. Load

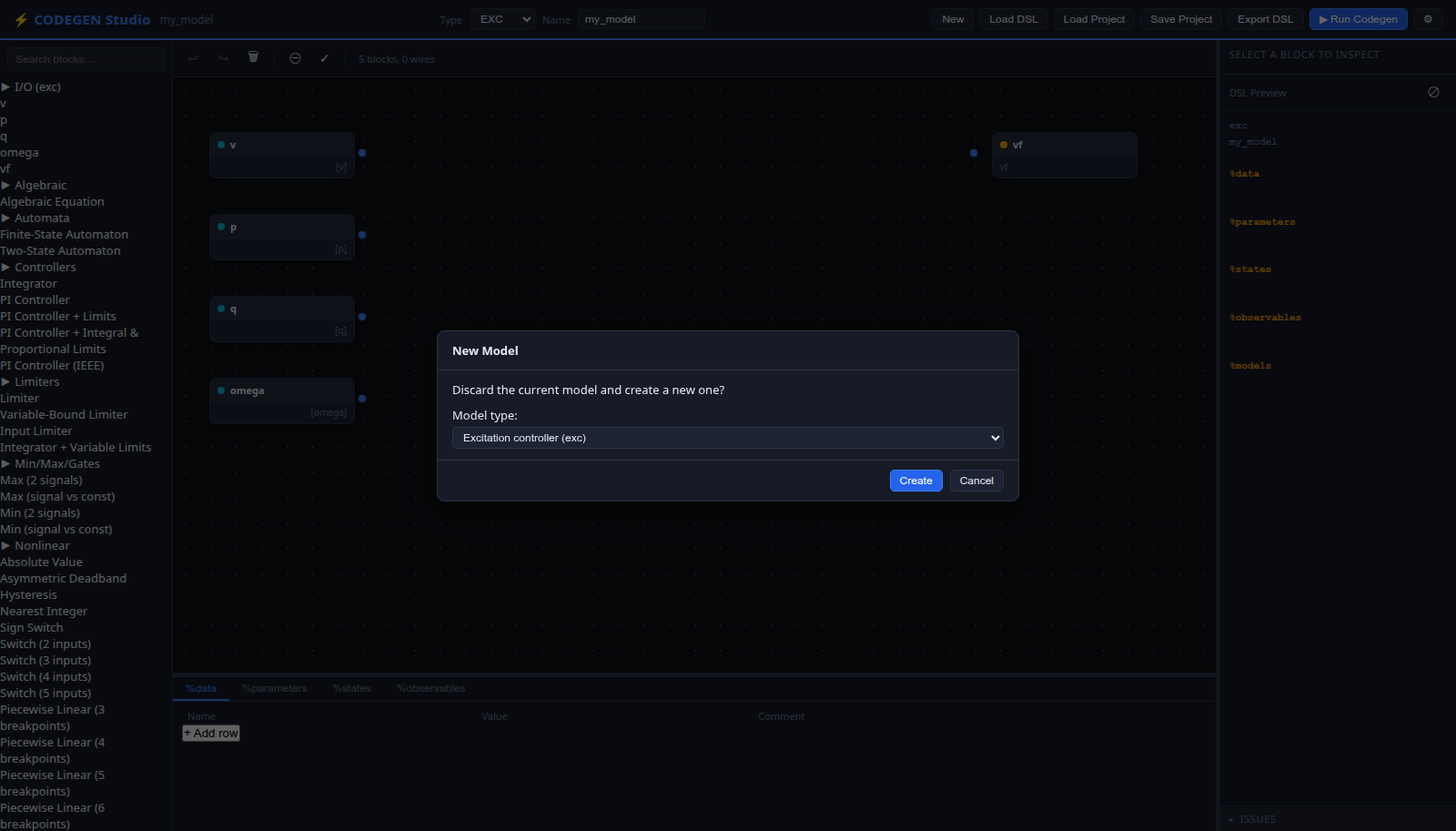

Clicking “New” resets the editor to a blank state. A confirmation dialog (“Discard current model?”) prevents accidental loss of work. If you want to keep your current model, save it first.

---

Importing a DSL File

Click “Load DSL” and select a .txt file written in the CODEGEN DSL format.

The backend parser extracts all sections and blocks from the file, and the editor reconstructs the canvas:

1. Each & blockname in %models becomes a node on the canvas
2. Signal references are resolved into wire connections
3. Metadata sections populate the corresponding tabs
4. A Sugiyama auto-layout algorithm assigns node positions automatically:
   • Blocks are arranged left-to-right by dependency order
   • A three-pass crossing-reduction minimises wire overlaps
   • Feedback loops are detected and handled gracefully

This lets you visually inspect and edit any existing CODEGEN model, including the example models.

---

Exporting a DSL File

Click “Export DSL” to download the generated .txt file.

Before export, the editor validates that all mandatory output states for the selected model type are produced by at least one block on the canvas. If any are missing, a warning dialog lists them:

Missing Mandatory Outputs

Missing mandatory outputs for exc: vf

The codegen binary will reject this model.

You can click “Export Anyway” to override the warning, or “Cancel” to go back and fix the model.

The exported file follows the strict DSL section order: model type, model name, %data, %parameters, %states, %observables, %models. Blocks are emitted in topologically-sorted order (dependencies before dependents).

Round-trip fidelity

You can import an exported DSL file back into the editor. Unknown block types (not in the catalogue) are preserved through rawArgLines and re-emitted verbatim, ensuring lossless round-trip even for custom or future blocks.

---

Running CODEGEN

Click “Run Codegen” (the accent-coloured button with the play icon) to compile the model into Fortran.

The same mandatory-output validation runs first. If validation passes:

1. The editor generates the DSL text
2. The backend writes it to a temporary file and invokes the codegen binary
3. On success, a modal displays the generated .f90 source code with options to “Download .f90” or “Close”
4. On failure, a modal shows the error output from the codegen binary

The downloaded .f90 file follows the naming convention exc_simple_avr.f90 (type prefix + model name) and is ready to compile and link with RAMSES.

Codegen binary required

The codegen executable must be installed and its path configured. Click the gear icon in the topbar to open Settings, then set the “Codegen binary path” to the full path of your codegen executable (or just codegen if it is on your system PATH).

---

File Formats Summary

Format	Extension	Use case	Lossless?
Project	.json	Save/resume editing	Yes — includes canvas positions, all metadata
DSL	.txt	Input to codegen binary	Structure only — no canvas layout
Fortran	.f90	Output from codegen	Export only — cannot be re-imported

---

Keyboard Shortcuts

Shortcut	Action
Ctrl+S / Cmd+S	Save project
Ctrl+Z / Cmd+Z	Undo
Ctrl+Y / Cmd+Shift+Z	Redo
Delete / Backspace	Delete selected block
Escape	Close any open modal

Shortcuts are disabled while typing in text fields.

---

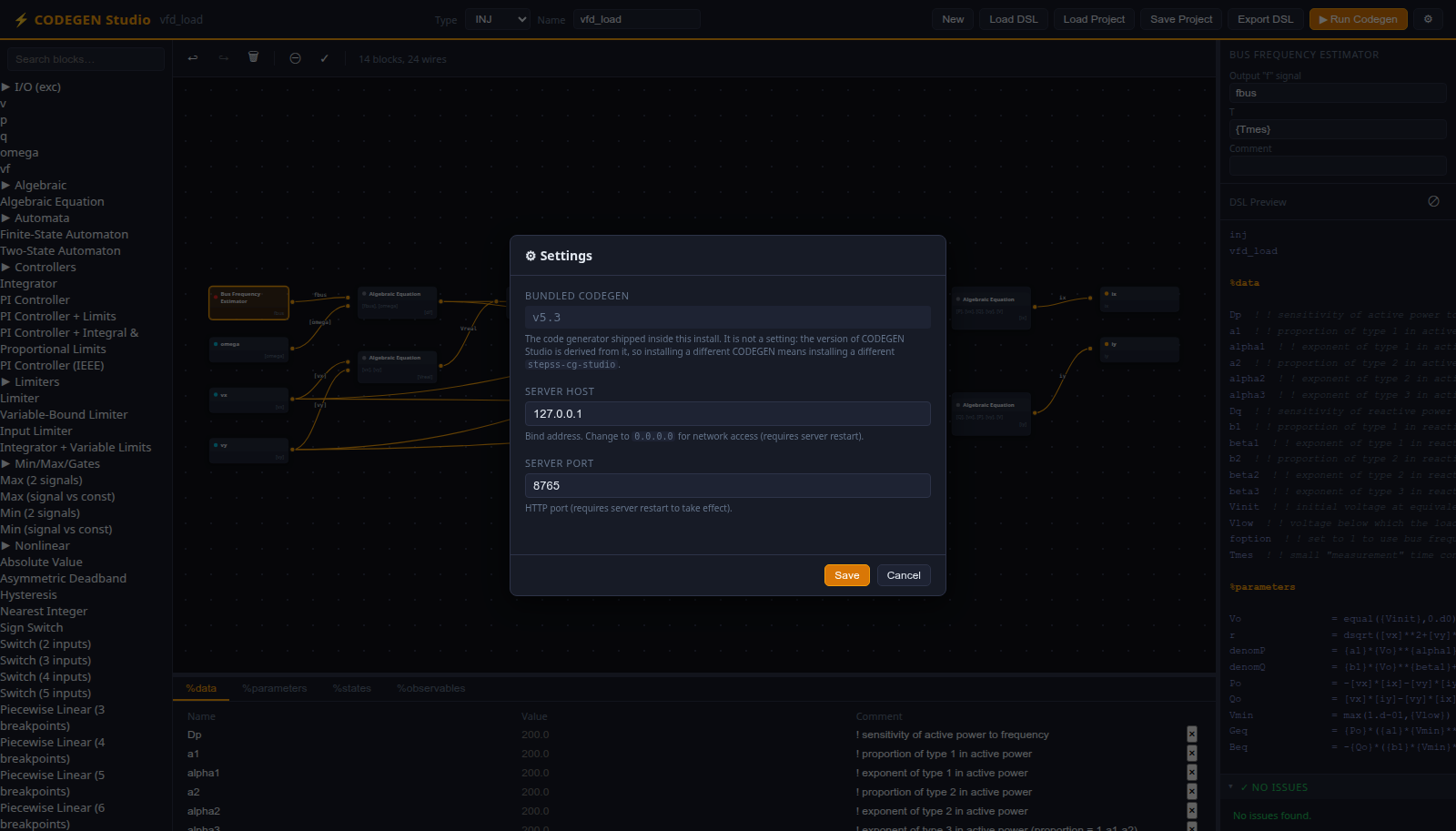

Settings

Click the gear icon in the topbar to configure:

Setting	Default	Description
Codegen binary path	codegen	Full path to the codegen executable
Server host	127.0.0.1	Bind address (change to 0.0.0.0 for network access)
Server port	8765	HTTP port

Changes to host and port require a server restart. The codegen path takes effect immediately.

Settings are stored in server/config.json and can also be edited via the REST API at /docs (Swagger UI).

---

Workflow Example: Building an AVR Model

This walkthrough creates a simplified Automatic Voltage Regulator (AVR) as an EXC model.

Step 1 — Set up the model

1. Select EXC from the Type dropdown
2. Type simple_avr in the Name field

Step 2 — Add data constants

Switch to the %data tab and add rows:

Name	Value	Comment
KA		AVR gain
TA		AVR time constant
VREF		Reference voltage

Step 3 — Place blocks

Drag the following blocks from the palette onto the canvas:

1. algeq — to compute the voltage error
2. tf1p — a first-order transfer function for the AVR

Step 4 — Connect and configure

1. Connect the algeq output to the tf1p input
2. Select the algeq block and set its Expression to {VREF}-[v]-avr1
3. Select the tf1p block and:
   • Rename its output signal to vf (this is the mandatory EXC output)
   • Set K to {KA} and T to {TA}

Step 5 — Define states

Switch to the %states tab and add:

Name	Init	Comment
avr1	vf/{KA}	AVR integrator state

Step 6 — Add observables

Switch to the %observables tab and add vf.

Step 7 — Export

1. Click “Export DSL” — validation passes because vf is produced by the tf1p block
2. The downloaded simple_avr.txt is ready for codegen -tsimple_avr.txt
3. Or click “Run Codegen” to generate exc_simple_avr.f90 directly

---

See Also

• User-Defined Models — DSL file format and model framework
• CODEGEN Blocks Library — complete block reference
• CODEGEN Model Examples — annotated model files for all four types
